Product Overview

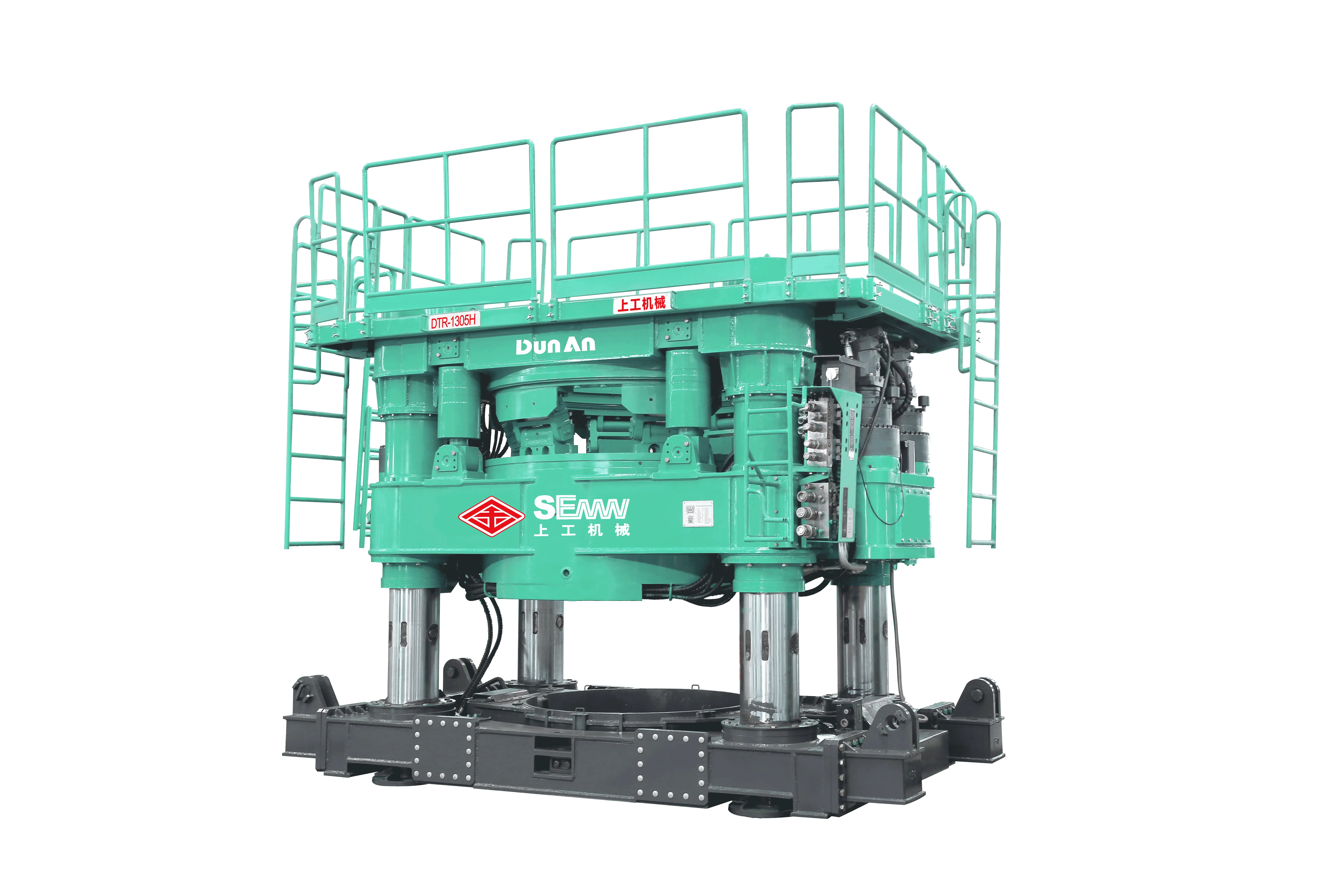

CRD1305H Casing Rotator
The SEMW CRD1305H is a fully hydraulic casing rotator designed for Ø600–1300 mm foundation drilling. It combines rotary casing drive, hydraulic pressing and casing extraction to support fully cased construction in complex ground conditions.
The machine is suitable for applications requiring controlled casing installation, bore stability and reliable foundation construction.
Powerful Rotary Performance
Three rotary torque settings of 1,400 / 825 / 466 kN·m, with a maximum instantaneous torque of 1,583 kN·m.
Hydraulic Casing Control
Maximum downward force of 540 kN and casing pull-out force of 2,440 kN for casing advancement and extraction.
Fully Cased Construction
Supports bore stability and construction in challenging ground conditions, including loose soil and underground obstructions.
Technical Specifications
CRD1305H Technical Parameters
| Parameter | Specification |
|---|---|
| Drilling Diameter | Ø600–1300 mm |
| Rotary Torque | 1400 / 825 / 466 kN·m |
| Peak Rotary Torque | 1583 kN·m (instantaneous) |
| Rotary Speed | 1.6 / 2.7 / 4.8 rpm |
| Maximum Downward Force | 540 kN |
| Casing Pull-Out Force | 2440 kN |
| Peak Pull-Out Force | 2690 kN (instantaneous) |
| Pressure-Pulling Stroke | 500 mm |
| Engine Power | 196 kW / 1800 rpm |
| Base Machine Weight | 25 t |
| Hydraulic Power Pack Weight | 8 t |
| Control Mode | Wired / Wireless Remote Control |
Specifications are based on the SEMW CRD Series product brochure. Actual configurations should be confirmed before ordering.
Construction Method
How the CRD1305H Works
The CRD1305H uses hydraulic rotary torque and vertical force to advance steel casing into the ground while excavation equipment removes soil or underground obstructions from inside the casing.
Typical Construction Process
Set up the casing rotator and align it with the designed pile location.
Rotate and press the steel casing into the ground.
Remove soil, rock fragments or obstacles from inside the casing using suitable excavation tools.
Complete foundation construction and extract the casing according to the approved construction method.
The full casing method helps maintain bore stability during excavation, particularly in difficult ground conditions.
Applications & Selection
Typical Applications
The CRD1305H can be considered for the following foundation construction applications:
How to Select the CRD1305H
The CRD1305H is designed for drilling diameters of Ø600–1300 mm. Before selecting this model, engineers should evaluate the required pile diameter, drilling depth, geological conditions, casing specifications and supporting equipment.
For larger drilling diameters or different torque and extraction requirements, other models in the SEMW CRD Series may be considered.
FAQ
Q1. What is the drilling diameter range of the CRD1305H?
The CRD1305H is designed for drilling diameters from 600 mm to 1,300 mm.
Q2. What is the maximum rotary torque?
The machine provides a maximum operating rotary torque of 1,400 kN·m and an instantaneous peak torque of 1,583 kN·m.
Q3. Can the CRD1305H work in difficult ground conditions?
The full casing method can be used in challenging geological conditions, including loose soil and certain underground obstructions. Actual suitability depends on the site conditions and excavation equipment.
Q4. How is the CRD1305H different from larger CRD models?
The CRD1305H covers the Ø600–1300 mm drilling range. Larger models offer different drilling diameters, rotary torque and casing extraction specifications. Selection should be based on project requirements.
