CRD1605H Casing Rotator

Short Description:

The SEMW CRD1605H Casing Rotator is designed for fully cased foundation drilling with diameters ranging from Ø800 to 1600 mm. Equipped with three rotary torque-speed settings and a maximum operating torque of 1,525 kN·m, it provides hydraulic casing rotation and extraction for foundation construction.

With a casing pull-out force of 2,440 kN and a base machine weight of 28 t, the CRD1605H offers a distinct equipment configuration within the SEMW CRD Series. Model selection should be based on pile dimensions, geological conditions and casing resistance.

Send email to us Download as PDF

Product Detail

Product Tags

Product Overview

CRD1605H Casing Rotator

The SEMW CRD1605H is a fully hydraulic casing rotator for Ø800–1600 mm foundation drilling. Compared with the CRD1305H, it covers a larger drilling diameter range and provides a different rotary torque-speed configuration for fully cased pile construction.

Its hydraulic system rotates and advances steel casing while supporting controlled extraction. Equipment suitability depends on pile dimensions, ground conditions and the required casing forces.

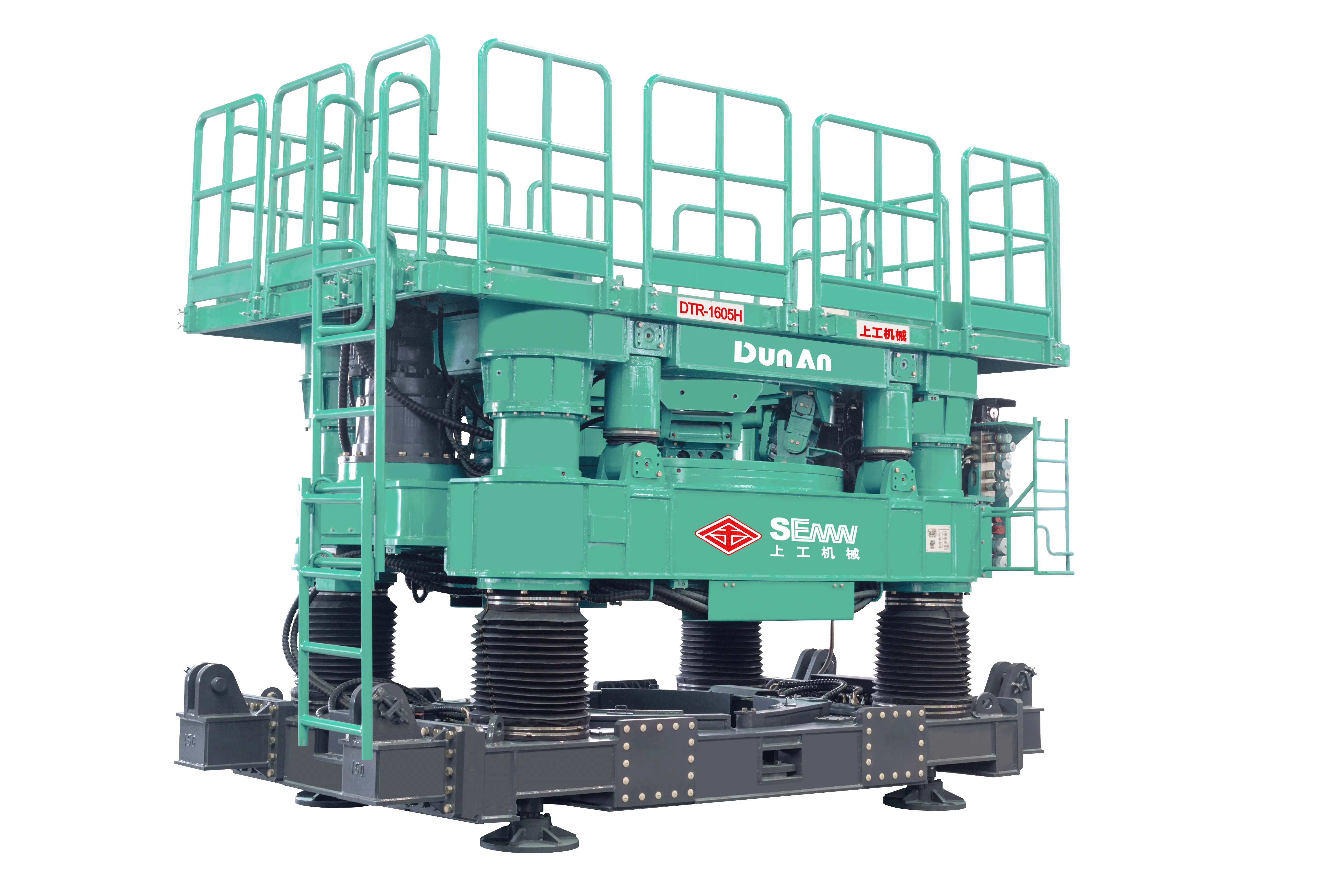

CRD1605H Casing — CRD Series equipment arrangement — series reference image; specific CRD1605H configuration should be confirmed.

Ø800–1600 mm Drilling RangeSupports casing diameters within the model's published drilling range.

Three Torque-Speed Settings1,525 / 906 / 512 kN·m at 1.3 / 2.2 / 3.9 rpm respectively.

Hydraulic Casing Force560 kN maximum downward force and 2,440 kN casing pull-out force.

Technical Specifications

CRD1605H Technical Parameters

Parameter	CRD1605H
Drilling Diameter	Ø800–1600 mm
Rotary Torque	1525 / 906 / 512 kN·m
Instantaneous Peak Rotary Torque	1744 kN·m
Rotary Speed	1.3 / 2.2 / 3.9 rpm
Maximum Downward Force	560 kN
Casing Pull-Out Force	2440 kN (2690 kN instantaneous)
Pressure-Pulling Stroke	500 mm
Power Pack Engine	Dongfeng Cummins QSC8.3-C260
Engine Rated Power	196 kW / 1800 rpm
Base Machine Weight	28 t
Hydraulic Power Pack Weight	8 t
Control Mode	Wired / Wireless Remote Control

CRD1605H casing rotator base machine technical drawing and dimensions — CRD1605H — base machine dimensions and parameter sheet

CRD1605H hydraulic power pack technical parameters and dimensions — CRD1605H — hydraulic power pack parameters and dimensions

Construction Method

Matching Rotary Torque and Speed to Casing Resistance

The CRD1605H rotates and presses steel casing into the ground while suitable excavation tools remove material from inside. Its three torque-speed settings allow the operating mode to be evaluated against casing resistance, geological conditions and the planned excavation method.

Position Equipment

Align the casing rotator and prepare supporting equipment.

Advance Casing

Rotate and press the casing under the selected operating setting.

Excavate Inside

Remove soil and obstructions using suitable tools as casing advances.

Complete the Pile

Finish pile construction and casing extraction according to the approved method.

CRD Series casing rotator base machine major components and hydraulic system — CRD Series base-machine components (series illustration)

CRD Series hydraulic power pack engine and control panel components — CRD Series power pack and controls (series illustration)

Applications & Selection

The CRD1605H can be evaluated for fully cased drilling in bridge foundations, transportation infrastructure and urban foundation projects that require a drilling diameter of Ø800–1600 mm.

Bridge Foundations — pile construction with casing support

Urban Foundation Works — controlled excavation near existing infrastructure

Mixed Ground Conditions — projects requiring careful casing and tool selection

Underground Obstructions — selected removal tasks with suitable auxiliary tools

CRD1605H or CRD1305H?

CRD1605H offers a larger drilling diameter range (Ø800–1600 mm versus Ø600–1300 mm) and higher maximum operating rotary torque (1,525 versus 1,400 kN·m). Both models list a casing pull-out force of 2,440 kN. Final selection must consider depth, geology, casing friction and supporting equipment.

FAQ

Q1. What drilling diameters does the CRD1605H support?

The published drilling diameter range is Ø800–1600 mm.

Q2. How do the CRD1605H torque-speed settings differ?

The three corresponding settings are 1,525 kN·m at 1.3 rpm, 906 kN·m at 2.2 rpm and 512 kN·m at 3.9 rpm.

Q3. Does the CRD1605H have a higher casing pull-out force than the CRD1305H?

No. Both models list a casing pull-out force of 2,440 kN. They differ in drilling diameter range, torque, speed, downward force and base-machine weight.

Q4. When should contractors consider the CRD1605H?

Consider this model when the required drilling diameter lies within Ø800–1600 mm and its torque-speed settings suit the ground and casing resistance. Final suitability requires a technical review.
