中文CRD1805H Casing Rotator
Product Overview
Hydraulic Casing Rotation for Ø1000–1800 mm Piles

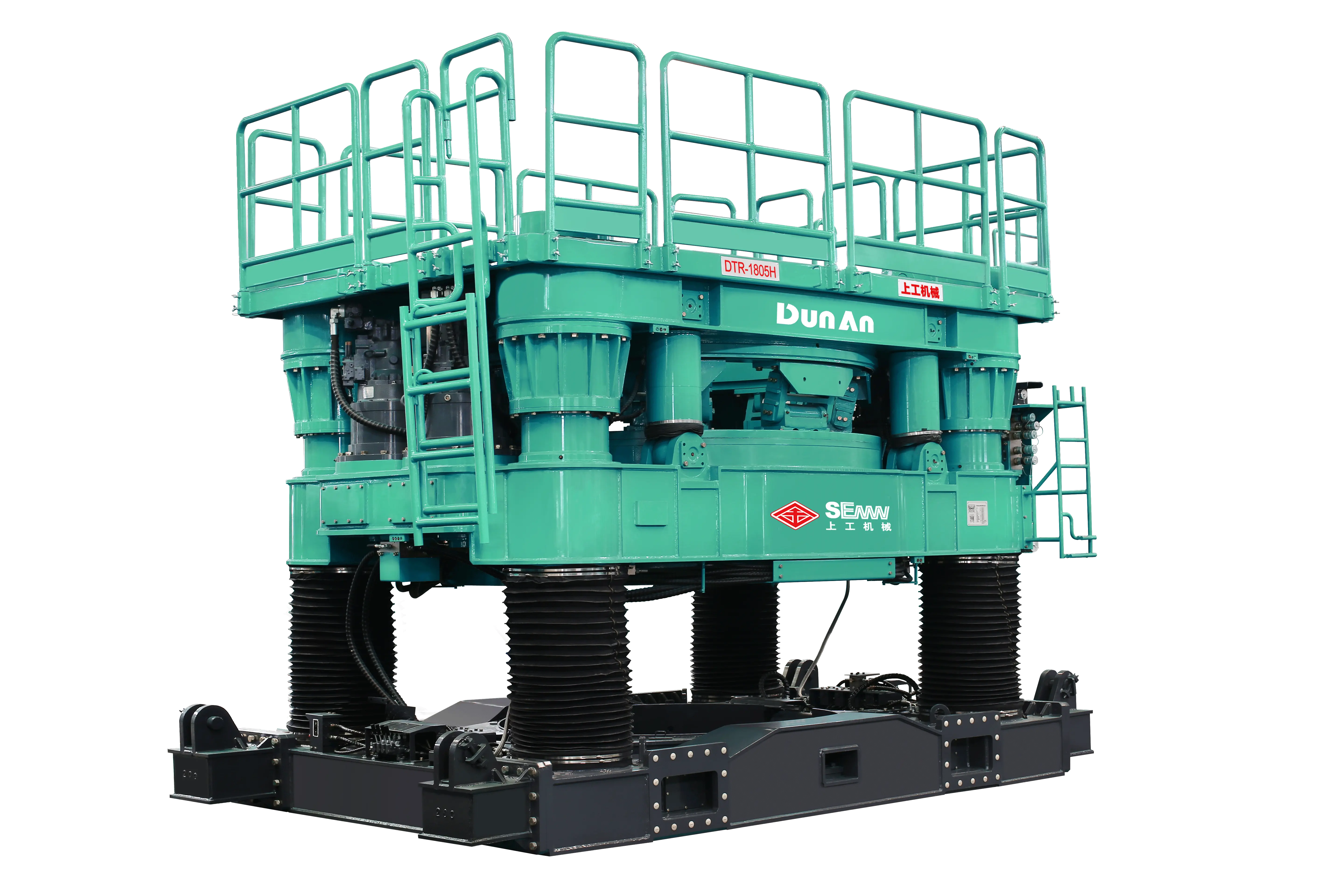

The SEMW CRD1805H Casing Rotator supports fully cased foundation drilling for bore diameters from Ø1000 to Ø1800 mm. Its hydraulic rotary drive and casing forces enable steel casing advancement and extraction in projects requiring controlled bore support.
With a published rotary torque configuration of 2651 / 1567 / 885 kN·m and a casing pull-out force of 3760 kN, the CRD1805H can be evaluated for demanding piling conditions subject to geological and construction requirements.
Technical Specifications
Model-specific figures from the CRD1805H technical drawings supplied by SEMW.
| Drilling Diameter | Ø1000–1800 mm |
| Rotary Torque | 2651 / 1567 / 885 kN·m |
| Instantaneous Peak Torque | 3005 kN·m |
| Rotary Speed | 1.1 / 1.8 / 3.3 rpm |
| Max. Downward Force | 600 kN |
| Casing Pull-Out Force | 3760 kN |
| Instantaneous Peak Pull-Out | 4300 kN |
| Pressure-Pulling Stroke | 500 mm |
| Base Machine Weight | 38 t (with transition frame, without reducer blocks) |
| Engine Options | Cummins QSM11-335 / Volvo TAD1152VE |
| Cummins Engine Power | 272 kW / 1800 rpm 250 kW / 2100 rpm (rated) |
| Volvo Engine Power | 285 kW / 1700 rpm 271 kW / 2000 rpm (rated) |
| Fuel Consumption | Cummins 216 g/kWh; Volvo 205 g/kWh (at maximum power rate, per brochure) |
| Power Pack Weight | 8 t |
| Control | Wired / wireless remote control |
Technical note: instantaneous peak values are not continuous operating values. Engine options and final equipment configuration should be confirmed with SEMW.
Equipment & Hydraulic System
The CRD Series integrates casing clamping, hydraulic rotary drive, vertical correction and coordinated excavation. The component diagrams below illustrate the working device and hydraulic power system; exact component configuration should be confirmed for CRD1805H.
Construction Method
The full casing method rotates and advances a steel casing while material is excavated from inside. The casing supports the bore during foundation construction.
Applications & Model Selection
Selection guidance: Match the Ø1000–1800 mm bore range and model-specific casing forces to required pile depth, geology, casing dimensions, lifting arrangement and site access. Do not select a model on diameter alone.
Frequently Asked Questions
Q1. What drilling diameter range does the CRD1805H cover?
The CRD1805H has a published drilling diameter range of Ø1000–1800 mm.
Q2. What are its rotary torque and speed settings?
Its rotary torque settings are 2651 / 1567 / 885 kN·m, corresponding to 1.1 / 1.8 / 3.3 rpm. Instantaneous peak rotary torque is 3005 kN·m.
Q3. What casing extraction capability does it provide?
The casing pull-out force is 3760 kN, with an instantaneous peak of 4300 kN. Actual construction capability depends on ground resistance and the overall equipment configuration.
Q4. Can it be used for obstacle removal?
Obstacle and existing pile removal are among the CRD Series construction methods, subject to the obstruction, geology, auxiliary tools and project-specific engineering evaluation.
Share your pile diameter, design depth, geological profile and casing requirements to discuss whether the CRD1805H is an appropriate equipment choice.
