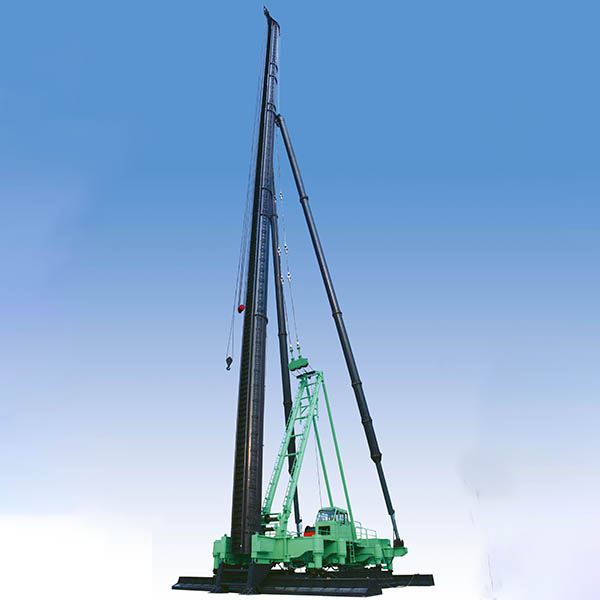

JB180 Hydraulic Walking Piling Rig

Short Description:

JB series Hydraulic Walking Piling Rig is famous design for highly integration of electric, hydraulic and mechanic piling rig. It owns completely the Independent Property Rights and has been awarded certificates from Chinese government due to its advanced technology. The rig provides excellent performance, reliable working, is widely used in SMW method (Soil Mixing Wall method). The rig can be attached with diesel pile hammer, pre-bored pre-cast piling equipment, etc. It is suitable for various piling and foundation conditions, such as, elevated highways, expressways, bridges, ports, water docks, metro stations and skyscrapers.


  • FOB Price: US $0.5 - 9,999,999 / Piece
  • Min. Order Quantity: 1 Piece/Pieces
  • Supply Ability: 100 Piece/Pieces per Month
  • Port: Shanghai Port
  • Payment Terms: L/C, D/A, D/P, T/T
  • Product Detail

    Product Tags

    Product Features
    HYDRAULIC WALKING PILING RIG
    1. MORE EFFECTIVE, STABLE AND DURABLE
    The leader, main platform and walking gear are designed for heavy-duty pile driving, to ensure more stable and effective work.
    Weight carrier of bigger load bearing.

    2. EASY FOR ASSEMBLY AND TRANSPORATION
    Modular structure design, easy for assembly and disassembly.
    Out triggers of the platform with the rotary pin structure, is driven by cylinder, which saves trouble of disassembly. Can be disassembled and transported by parts, easy for
    transportation.

    3. ADVANCED ELECTRO-HYDRAULIC CONTROL SYSTEM AND TECHNOLOGY
    Both main drum and auxiliary drum are under electro-hydraulic proportional control, available for variable speed control and lock any speed.
    Main pump, control valve, pressure gauge, drums are all using domestic and foreign well-known brands.

    4. PRACTICAL AND RELIABLE OPERATION MONITORING SYSTEM
    Standard leader with goniometer and inductive load angle monitor (optional) provide instant information about batter piling and pulling force, set alarm while in danger. The previous functions can be achieved while the piling rig working with ZLD series agitating auger and sensors (optional).
    Deep mixing pile monitor (optional) provides data of pile depth, piling speed, the amount of slurry, and output of the information.

    5. COMFORTABLE OPERATION CAB FOR EASY CONTROL
    Well insulated operator’s room with five wind shields assures bright, quiet environment with minimum fatigue.
    Hydraulic actuated winch control levers allow well performance and easy control.
    Space for drill control box, inductive load angle monitor (optional), deep mixing monitor (optional) is reserved in the operator’s room, make the single-driver control easy and reliable.

    TECHNICAL PERFORMANCE CHARACTERISTICS OF JB180
    1. JB180 leader can be extended up to 60m, together with ZLD series agitating auger, it can drill holes of depth up to 53m, which is the best choice for deep foundation reinforcement and soft soil conditions.
    2. Weight carrier of bigger load bearing, suitable for long Auger and vibration impact hammer, conducting large - depth filling pile operations.
    3. JB180 contains 8 lifting cylinders, increase site adaptability.
    4. Unique positioning structure design guarantees a self-erect without help of service crane. JB180 can make 60m height.
    5. JB180 was granted complete intellectual property rights and 6 patents, including 3 patents for invention and 3 patents for utility.
    6. Customizable large operator room of JB180 can install air condition (optional),
    more humanization configuration.

    Product Model: JB180
    Specifications

    Item JB180 HydraulicWalking Piling Rig
    Total length of leader (m) 21~60
    Diameter of leader (mm) Ø1220
    Center distance between leader and mounted equipment (mm) 600×ø102
    Leader inclination angle (left to right) (°) ±1.5
    Backstay stroke (mm) 3400
    Leader trimming cylinder stroke (mm) 400
    Max. auger model ZLD220/85-3-M2-CS
    Max. diesel hammer model D180
    Max. leader length (m) 60
    Max. pulling force (with Max. leader) (KN) 800
    Hydraulic winch (for mounting auger, diesel hammer) Pulling force of single rope (KN) 100max
    Winding and rewinding peed (m/min) 0~21
    Rope diameter (mm) ø22
    Drum capacity (m) 835
    Hydraulic winch (for uplift, drilling pipe, pile) Pulling force of single rope (KN) 110max
    Winding and rewinding peed (m/min) 0~20
    Rope diameter (mm) ø22
    Drum capacity (m) 300
    Swing angle (°) ±10
    Transverse travel Travel speed (m/min) ≤3.4
    Travel step (mm) 3100
    Vertical travel Travel speed (m/min) ≤ 1.3
    Travel step (mm) 800
    Uplift of the track Speed (m/min) ≤ 0.44
    Height (mm) 500
    Distance between tracks Working (mm) 9400
    Travelling (mm) 6000
    Distance between pulleys in track Working (mm) 6000
    Travelling (mm) 5000
    Transverse-moving track Length (mm) 10800
    Width (mm) 1800/1200
    Vertical-moving track Length (mm) 6900
    Width (mm) 1700
    Connection between outrigger beam and platform Pin rotary, cylinder expanding
    Average ground pressure (MPA) ≤0.1
    Motor power (kw) 45
    Hydraulic crowded system (MPA) 25/20
    Hydraulic crowded system operation Manual & electric control
    Total weight of piling rig (T) ≈195

    Note: Specifications are subjected to change without prior notice.

    Application

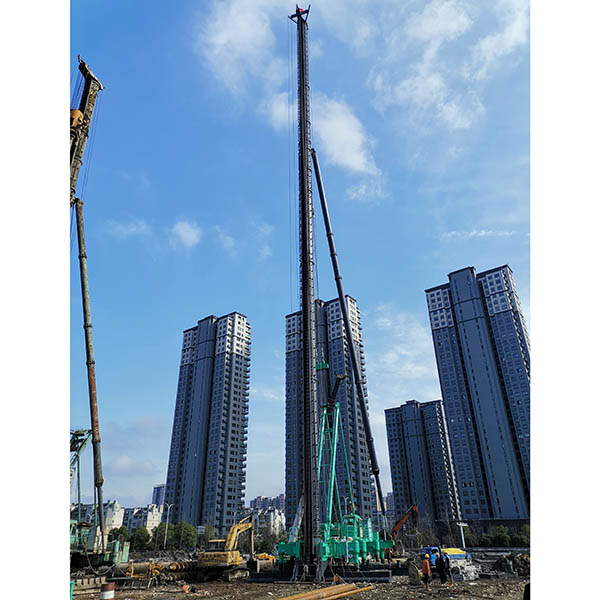

    BEILUN NINGBO PORT PROJECT   Product: Diesel Pile Hammer & JB180 / THE GATE OF THE ORIENT, SUZHOU    Product: ZLD220 & JB180 / GUANGZHOU METRO PROJECT     Product: ZLD330&JB180

    JB180 Hydraulic Walking Piling Rig3
