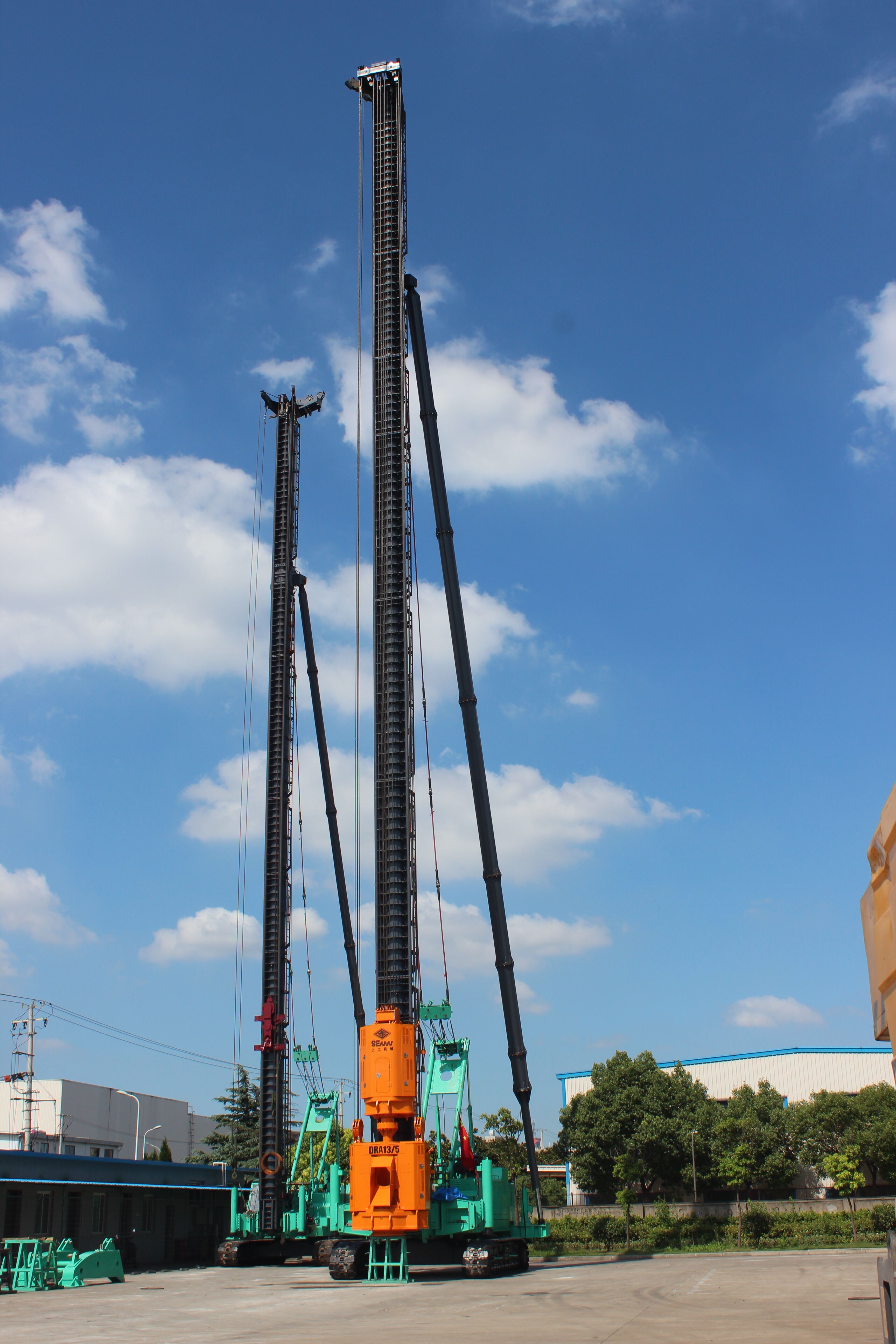

SPR165K Hydraulic Pile Driving Rig
The SEMW SPR165K is a heavy-duty crawler-mounted hydraulic pile driving rig engineered to support high-leader foundation construction. Its 48 m standard leader, expandable crawler support arrangement and hydraulic winch configuration provide a platform for selected piling and drilling attachments in building, bridge and port foundation projects.
48 mStandard leader length
168 tMaximum permissible operating weight
191 kWRated engine power
1.8 r/minRig swing speed
Product Overview
SPR165K is configured for projects that require a taller leader and greater operating-weight capacity than smaller SPR models. The rig combines a hydraulic lifting system, slewing mechanism, stabilizing leader support and tracked undercarriage for planned foundation operations. Attachment selection, working-platform bearing capacity and handling loads should be assessed together when preparing a site-specific piling arrangement.
High-Capacity Working Platform
A 168 t maximum permissible operating weight, 21.5 t counterweight and 57 t basic machine weight support engineering evaluation of the intended machine configuration.
Hydraulic Handling and Rig Positioning
Main, auxiliary and third winch systems work alongside rig swing and crawler functions for lifting, positioning and operation of compatible pile-installation equipment.
SPR165K Technical Specifications
Key technical characteristics for model evaluation and preliminary equipment planning:
| Specification | SPR165K |
|---|---|
| Main / auxiliary / third winch lifting speed — low / high | 39 (3.9) / 78 (7.8) m/min |
| Fourth winch lifting speed (optional) — low / high | 42 (4.2) / 42 (4.2) m/min |
| Leader drum winding / rewinding speed | 40 (4.0) m/min / 40 (4.0) m/min |
| Swing speed | 1.8 r/min |
| Travel speed | 0.8 (0.08) km/h |
| Gradeability (basic machine) | 40% |
| Basic machine weight | 57 t |
| Counterweight | 21.5 t |
| Standard leader length | 48 m |
| Maximum permissible operating weight | 168 t |
| Ground-contact area | 96,460 cm² |
| Average ground pressure at maximum operating weight | 174 kPa |
| Engine families | FIAT / Cummins (configuration dependent) |
| Rated engine power | 191 kW |
| Maximum engine torque | 1,160 N·m at 1,500 rpm |
| Battery | 24 V, 200 Ah × 2 |
| Fuel tank | 250 L |
The operating arrangement, engine specification, leader configuration and attachment compatibility may vary with the machine configuration. Confirm the final technical configuration with SEMW before equipment selection.

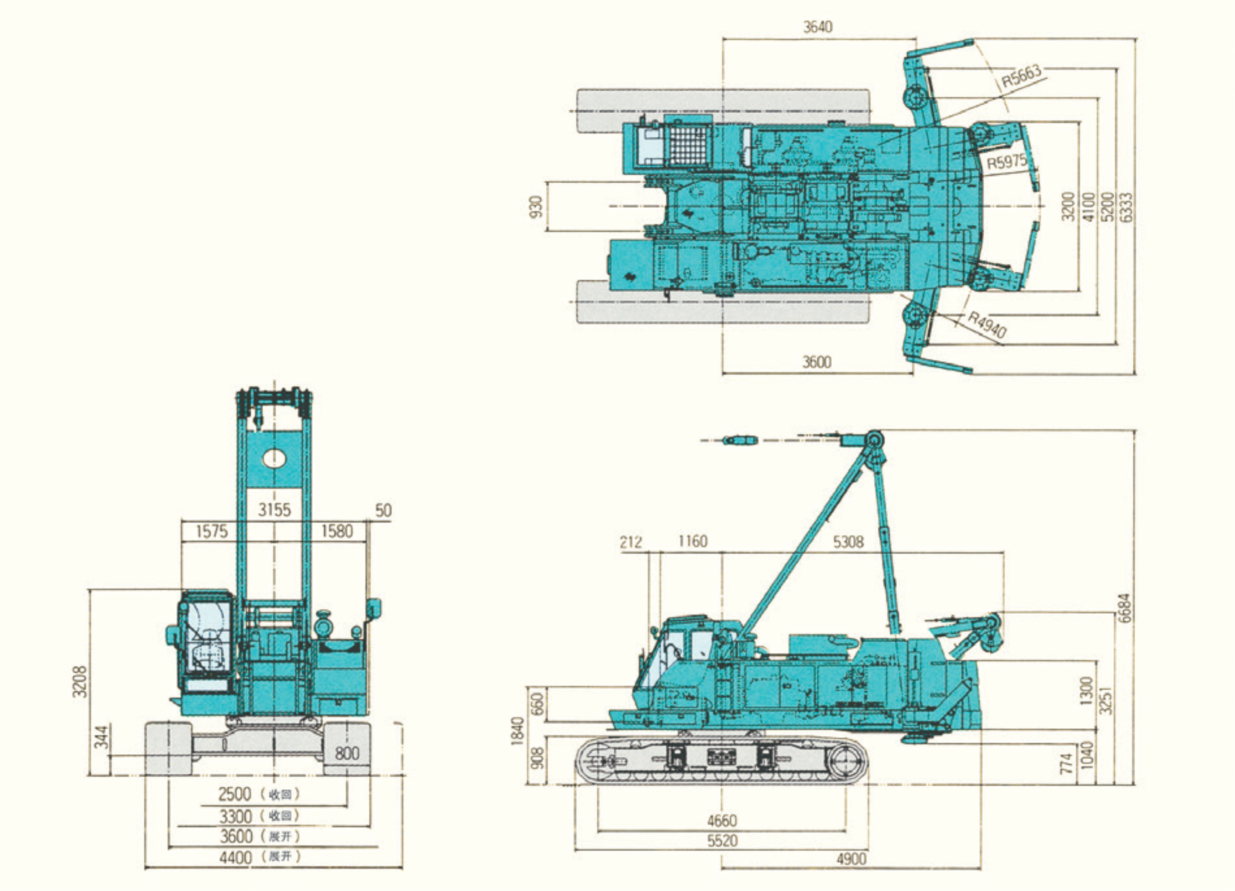

Machine Layout, Counterweights and Technical Drawings

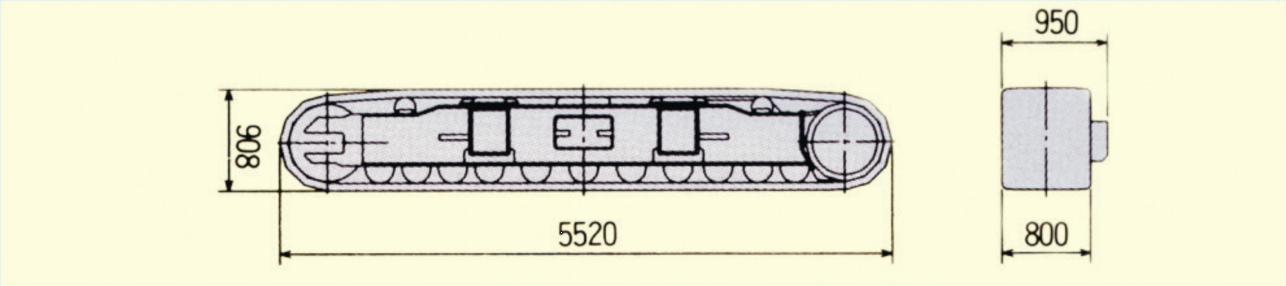

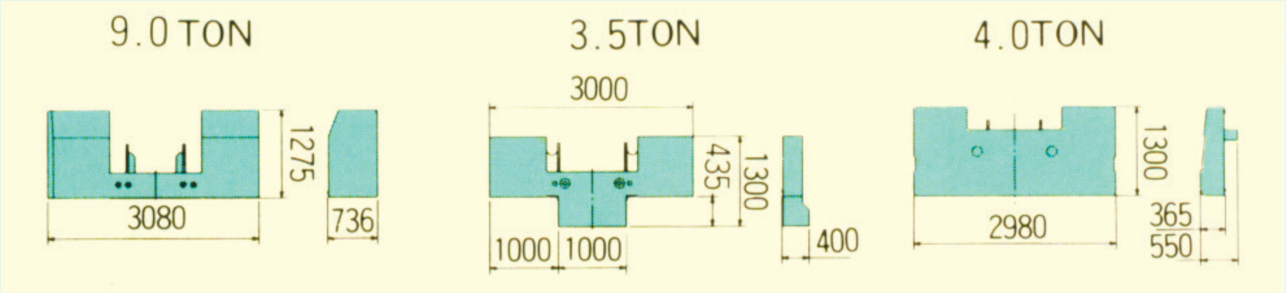

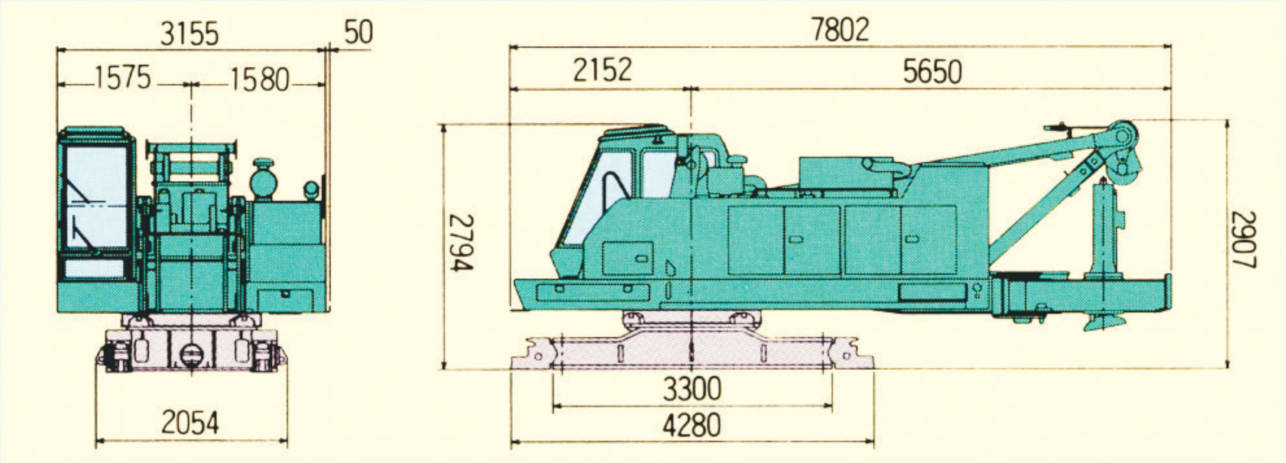

Machine drawings illustrate the basic carrier layout, undercarriage dimensions and counterweight configurations. These drawings are useful for planning transport, assembly clearances and suitable working-platform access.
Features for Heavy-Duty Foundation Work
Leader Guidance and Stabilization
The tall mast and inclined support struts form the guiding structure for compatible piling tools. Leader alignment is a key consideration for attachment positioning and pile verticality.
Expandable Crawler Arrangement
The tracked undercarriage is configured for site movements and a stable operating footprint. Ground preparation, travel path and bearing capacity must be checked against the planned machine loads.
Configurable Winch Functions
Multiple hydraulic winches support hoisting and positioning operations. Optional functions may be selected according to the piling tool and site handling sequence.

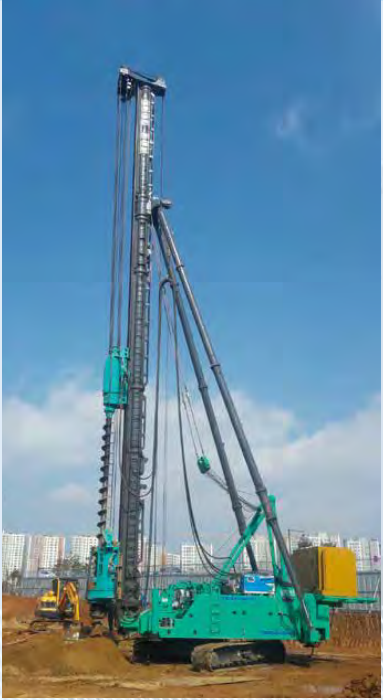

Foundation Applications and Equipment Configuration
The SPR165K can act as a leader-mounted platform in building foundations, bridge piling, port works and transport infrastructure, depending on the installed attachment and engineering requirements.
Typical Equipment Integration
- Compatible diesel pile hammers and hydraulic pile hammers
- Selected vibratory pile-driving equipment
- Suitable auger and foundation drilling arrangements
Attachment fitment requires verification of loads, dimensions, power requirements and leader guidance.
Key Selection Considerations
- Pile type, section, length and design capacity
- Ground stratigraphy and anticipated installation resistance
- Rig working radius, hoisting and leader configuration
- Site access, crane support and working-platform design
Why Choose SEMW for Piling Equipment?
Shanghai Engineering Machinery Co., Ltd. (SEMW) develops foundation construction equipment for specialist ground-engineering applications. The SPR165K belongs to its SPR hydraulic pile-driving range, allowing engineering teams to compare leader heights, lifting arrangements and support capacities across the series. SEMW can assist with model selection, suitable piling attachments, configuration discussions and technical enquiries for project-specific needs.
Frequently Asked Questions
What is the standard leader length of the SPR165K?
The SPR165K is specified with a standard 48 m leader. The operating configuration must be checked for the selected attachment and project requirements.
What is the maximum permissible operating weight?
The SPR165K has a maximum permissible operating weight of 168 t. This value is a machine specification, not a universal permissible lifting capacity for every operating condition.
Can the SPR165K support different piling attachments?
The SPR platform can be configured with suitable pile-driving hammers or foundation drilling attachments. Compatibility depends on the attachment load, dimensions, power configuration and leader requirements.
What information is needed for selecting a piling rig?
Provide pile type and dimensions, expected pile length, geotechnical data, construction method, proposed attachment and site access conditions so the equipment arrangement can be assessed.
Technical Enquiry
For equipment selection and foundation piling configuration, contact Shanghai Engineering Machinery Co., Ltd. (SEMW) with project details, pile dimensions, ground conditions and required attachment information. Explore the SPR hydraulic pile driving rig range or contact SEMW for technical discussions.
